A permanent repair and strengthening system for damaged or leaking onshore and offshore pipelines. Engineered to restore full structural capacity and extend asset service life by 25 years or more.
Offshore pipelines are subject to a range of integrity threats that accelerate degradation and demand permanent, reliable repair solutions.
Offshore pipelines are subject to a range of integrity threats that accelerate degradation and demand permanent, reliable repair solutions.
External wall loss including local thinning and pitting
The Epoxy Sleeve Repair System is a permanent solution for repairing and strengthening damaged or leaking onshore and offshore pipelines. It can be applied to a wide range of pipeline configurations including:
Two half-shell sleeves installed around the damaged pipeline creating an annular gap
Sleeve halves bolted together using a calculated activation force
Epoxy injected into the annulus through pre-installed injection ports

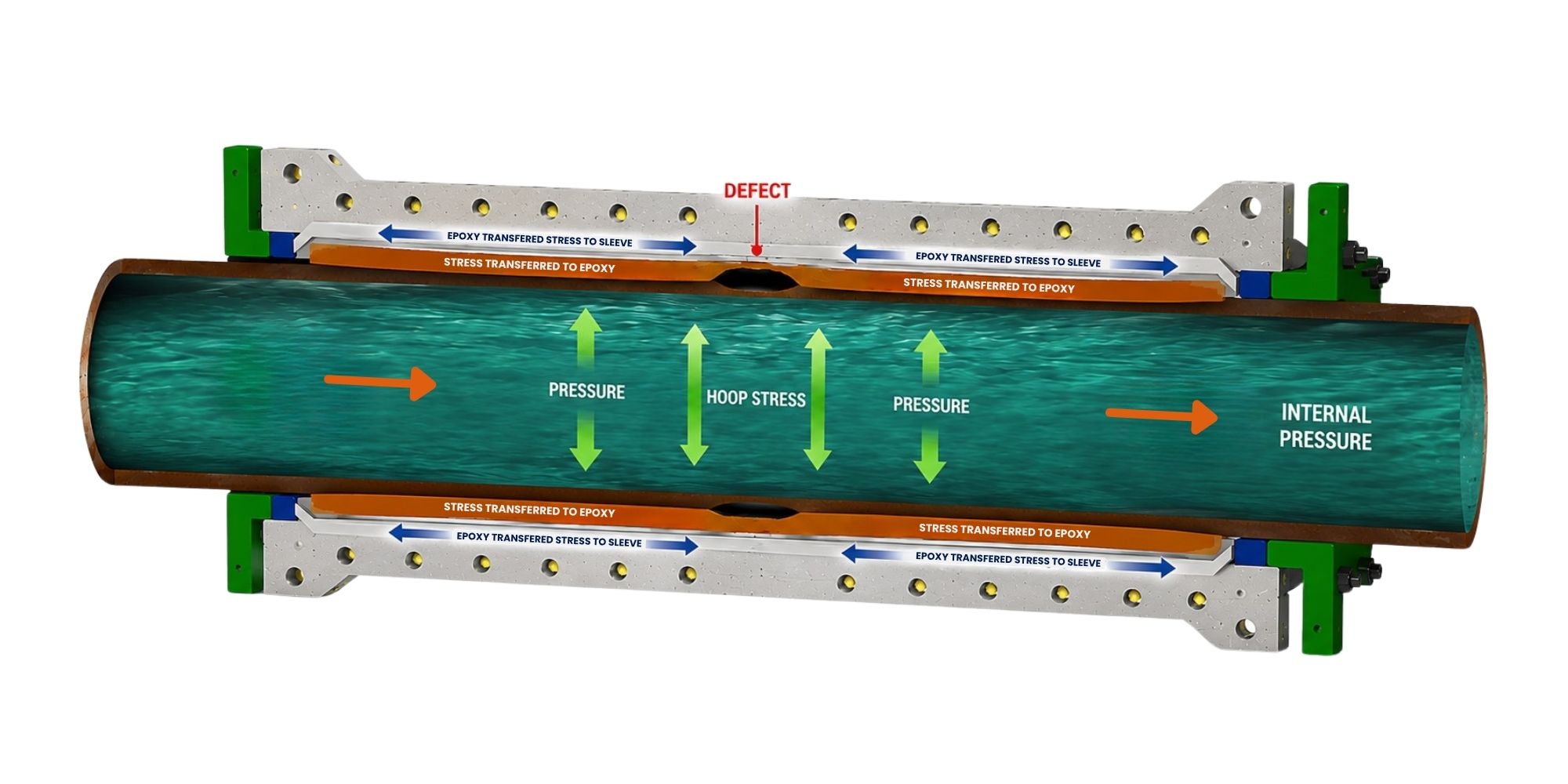

Cured epoxy transfers load from the damaged pipe to the sleeve restoring full strength
Surface prepared using high-pressure waterjet blasting or other chosen methods.
Using divers or ROV, sleeve halves are positioned around the designated pipe segment.
Steel sleeve halves and segments bolted together and capped with end flanges.
Annulus grouted with low exothermic high-strength slow-curing epoxy resin via injection ports.
Completed sleeve consists of shell, end flanges, stud bolts, epoxy and cathodic protection.
Follow each stage of the Epoxy Sleeve installation process in detail — from surface preparation and sleeve positioning through to epoxy injection and final completion.
Long-term repair solution restoring full structural capacity
No welding or hot work required during installation
Suitable for subsea installation on pressurised systems
Over 60+ units of Epoxy Sleeves successfully installed around the world
Restores and extends asset life by 25 years or more
Designed and validated in accordance with relevant ASME and DNV standards
Significantly more cost-effective than full pipe replacement
Suitable for risers, flanges, T-joints, PLEMs and buried pipelines
